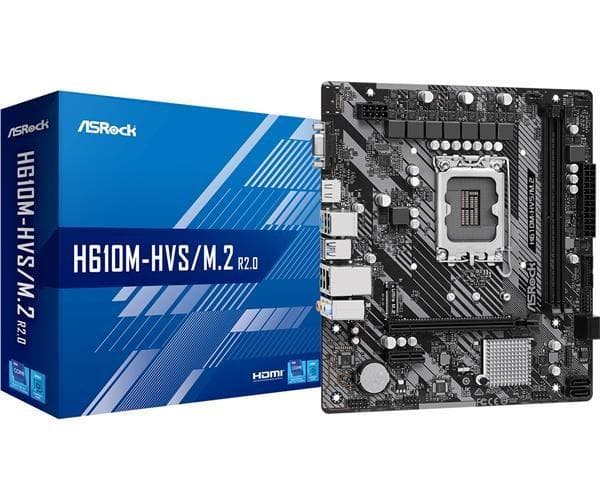

ASRock MB Sc LGA1700 H610M-HVS/M.2 R2.0, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX

ASRock MB Sc LGA1700 H610M-HVS/M.2 R2.0 EAN: 4710483939914 <img src="/image/3380773-66dbe4d27d52e-1035773-620-620-3.webp"> Všeobecný popis Podpora 12. generácie procesorov Intel Core™ (LGA1700). 7-fázový výkonový design. Podpora DDR4 3200MHz. 1 PCIe 4.0 x16, 2 PCIe 3.0 x1. Výstupné možnosti grafiky: HDMI, D-Sub. <img src="/image/3380773-66dbe4d28952b-1035774-620-620-3.webp"> A-Style Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm. Unikátna funkcia ASRock Super Alloy. Premium Power Choke. Sapphire Black PCB. High Density Glass Fabric PCB. ASRock Ultra M.2 (PCIe Gen3x4). ASRock Full Spike Protection. ASRock Live Update & APP Shop. <img src="/image/3380773-66dbe4d295581-1035775-620-620-3.webp"> CPU Podpora 12. generácie procesorov Intel Core™ (LGA1700). 7 Power Phase design. Podpora Intel Hybrid Technology. Podpora Intel Turbo Boost Max 3.0 Technology. Chipset Intel H610. Pamäť Dual Channel DDR4 Memory Technology. 2 x DDR4 DIMM Slots. Podpora DDR4 non-ECC, un-buffered memory up to 3200. Podpora ECC UDIMM memory modules (operate in non-ECC mode). Max. kapacita systémovej pamäte: 64GB. Podpora Intel Extreme Memory Profile (XMP) 2.0. <img src="/image/3380773-66dbe4d29b405-1035776-620-620-3.webp"> BIOS 128Mb AMI UEFI Legal BIOS s podporou viacjazyčného GUI. ACPI 6.0 Compliant wake up events. SMBIOS 2.7 Support. Grafika Intel Xe Graphics Architecture (Gen 12). Podpora HDMI a D-Sub portov nezávislými display kontrolérmi. Podpora HDMI 2.1 TMDS s max. rozlíšením až 4K x 2K (4096x2160) @ 60Hz. Podpora D-Sub s max. rozlíšením až 1920x1200 @ 60Hz. Audio 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec). Podpora Surge Protection. LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s. 1 x Realtek RTL8111H. Podpora Wake-On-LAN. Podpora Lightning/ESD Protection. Podpora Energy Efficient Ethernet 802.3az. Podpora PXE. <img src="/image/3380773-66dbe4d2a11f5-1035777-620-620-3.webp"> Sloty CPU: 1 x PCIe 4.0 x16 Slot (PCIE2), podporuje x16 mode. Chipset: 1 x PCIe 3.0 x1 Slot (PCIE1). Podpora NVMe SSD ako boot disky. Úložisko Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), podporuje typ 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode. 4 x SATA3 6.0 Gb/s Connectors. Podpora NVMe SSD ako boot disky. Podpora ASRock U.2 Kit. Konektory 1 x SPI TPM Header. 1 x Chassis Intrusion and Speaker Header. 1 x CPU Fan Connector (4-pin). 1 x Chassis/Water Pump Fan konektor (4-pin) (Smart Fan Speed Control). 1 x 24 pin ATX Power Connector. 1 x 8 pin 12V Power Connector. 1 x Front Panel Audio Connector. 1 x USB 2.0 Header (Podpora 2 porty USB 2.0) (Podpora ESD Protection). 1 x USB 3.2 Gen1 Header (Podpora 2 porty USB 3.2 Gen1) (Podpora ESD Protection). Zadný panel I/O 1 x PS/2 Mouse/Keyboard Port. 1 x D-Sub Port. 1 x HDMI Port. 2 x USB 3.2 Gen1 Ports (Podpora ESD Protection). 4 x USB 2.0 Ports (Podpora ESD Protection). 1 x LAN-port RJ-45 s LED (ACT/LINK LED a SPEED LED). HD Audio Jacks: Line in / Front Speaker / Microphone. Softvér a UEFI Softvér: ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN. UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash. Support CD Drivery, Utilities, AntiVirus Software (Trial Version). Príslušenstvo Quick Installation Guide, Support CD, I/O Shield. 2 x SATA Data Cables. 1 x Screw pre M2 Socket. Hardvér Monitor Fan Tachometer: CPU, Chassis/Water Pump Fans. Quiet Fan (Auto-adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans. Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans. CASE OPEN detekcie. Monitorovanie napätia: CPU Vcore, DRAM, +0.82 V PCH, +1.05 V PCH, VCCIN AUX, VCCSA, +1.05 V PROC, +12 V, +5 V, +3.3 V. Form Factor Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm. Solid Capacitor design. OS Microsoft Windows 10 64-bit / 11 64-bit. Certifikácia FCC, CE. ErP/EuP ready (ErP/EuP ready power supply je vyžadované).
