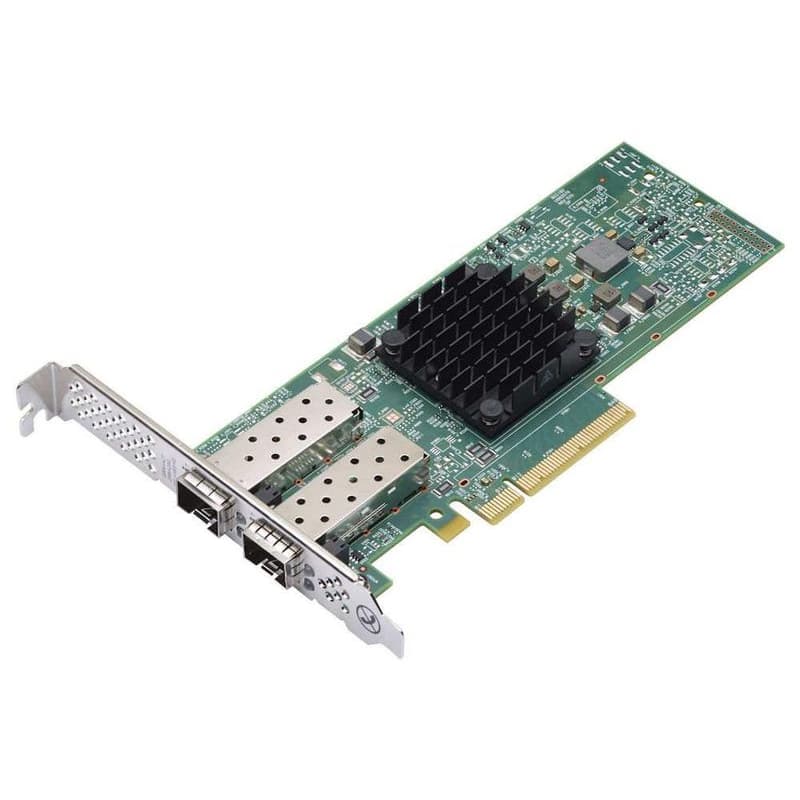

Lenovo ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter

Adaptér má nasledovné technické špecifikácie: Based on Broadcom BCM57412 (1-port) a BCM957414 (2-port) ovládače PCIe 3.0 x8 host interface copper (DAC) kábel alebo aktívny optický kábel (AOC). Support pre PXE boot, iSCSI boot a Wake-on-LAN (WOL) Networking Features Jumbo frames (up to 9600-Byte) 802.3x flow control Link Aggregation (802.3ad) Virtual LANs-802.1q VLAN tagging 1588 a Time Sync Forward Error Correction Clausa 74, Clausa 91 podpora nad 25 Gbps Performance Features Max. 30M Packet Per Second Low latency Bidirectional wire speed throughput Stateless Offload Features TCP, UDP, IPv4, IPv6 Scaling (TSS) Header-Payload Split Accelerated Received Flow Steering (RFS) Virtualization vSwitch Acceleration NetQueue, VMQueue, a Multiqueue PCI SIG SR-IOV kompatibilný s podporou pre 128 Virtual Functions Virtual NIC (vNIC) /vNIC physical functions VXLAN-aware stateless offloads NVGRE-aware stateless offloads Geneve-aware stateless offloads IP-in-IP-aware stateless offloads GRE-aware (encap/decap) stateless offloads (VF) štatistické údaje VF Receive-Side Scaling (RSS)/Transmit-Side Scaling (TSS) RDMA over Converged Ethernet (RoCE) RoCEv1 a RoCEv2 Centrum dát bridzovanie s RoCE Reliable Connection Queue Pár Unreliable Datagram Queue Pair Raw Ether Up to 64K Shared Receive Queues Up to 1 milión Completion Queues Up to 1 milión Memory Regions and Memory Windows Up to 1 million Protection Domains Fast Memory Register Linux OFED 3.5 and later MS-Windows Network Direct Kernel Provider Interface and SMBDirect MS-Windows Network Direct Service Provider Interface Integrated Flow Processing 1 million+ Exact Match Flows Exact Match Flow Lookup Wildcard Match Flow Lookup VLAN insertion/del Encapsulation/De-capsulation Flow tracking and aging Prieskum Metering Flow counters/statistics Custom tunnel header support Data Center Bridging Priority-based flow control (PFC; IEEE 802.1Qbb) Enhanced transmission selection (ETS; IEEE 8Q). IEEE 802.1Qau) Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz) Up to 8 traffic classes per port; fully DCB kompliant pre 802.1Qbb Management TruManage Technológia je založený na distribuovaných manažmentoch Task Force (DMTF) štandardoch a protokoloch, na podporu SMASH2.0, WS-Man, a IPMI2.0/DCMI1.5 Management Component Transport Protocol (MCTP) - MCTP over SMBus a MCTP manažment PCI Express Active State Power Management (ASPM) PCI Express eCLKREQ support PCI Express unused lane powered down Ultra low-power mode Energy Efficient Ethernet (IEEE Std 802.3az-2010) Power Management (PM) Offload
